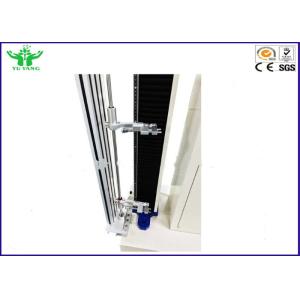

    100kn Touch Screen 10 Ton Tensile Compression Strength Universal Testing Machine

    Ask Lasest Price
    Brand Name : YUYANG
    Model Number : YY1311
    Certification : QB/T 2918-2007
    Price : negotiable
    Payment Terms : Western Union, T/T, L/C,Paypal
    Supply Ability : 3 pcs /week
    • Product Details
    • Company Profile

    100kn Touch Screen 10 Ton Tensile Compression Strength Universal Testing Machine

    100kn Touch Screen 10ton Universal Testing Machine Tensile Compression Strength Testing Machine


    Description:

    electronic universal testing machine is a versatile piece of equipment that can be used to test the tensile, compression, and flexural strength of materials. It is a valuable tool for engineers, scientists, and quality control professionals. The machine is easy to use and comes with a variety of features that make it ideal for a variety of applications.


    Specification:


    Model

    YY1311

    Capacity (optional)

    100, 200, 500 N; 1, 2, 5 kN,50kn,100kn,300kn,500kn

    Unit (Switchable)

    kgf, gf, Ton, lbf, N, kN or by user`s definition

    Load Resolution

    1/50,000 (U25)

    Load Accuracy

    ±0.5%

    Stroke (exclude the grips)

    1000 mm

    Method of Speed Input

    knob

    Test Speed

    5~500 mm/min adjustable

    Stroke Resolution

    stroke:0.00125 mm / extensometer:0.025 mm

    Sample Rate

    16 times/sec

    Indicator

    print able, display elongation vatue, test values, max. value & break values.

    Motor

    AC servo motor

    Dimension (W×D×H)

    55 × 35× 177 cm

    Weight (approx.)

    115 kg (excluding control cabinet and grips)

    Power

    1∮, 220V, 5A or specified by user 50HZ/60HZ


    Accessories such as different grips, elongation measuring devices... Etc. are

    Equipped according to the requirements stipulated in the contract; Our sales

    The representative will also give our clients appropriate advice in advance.
