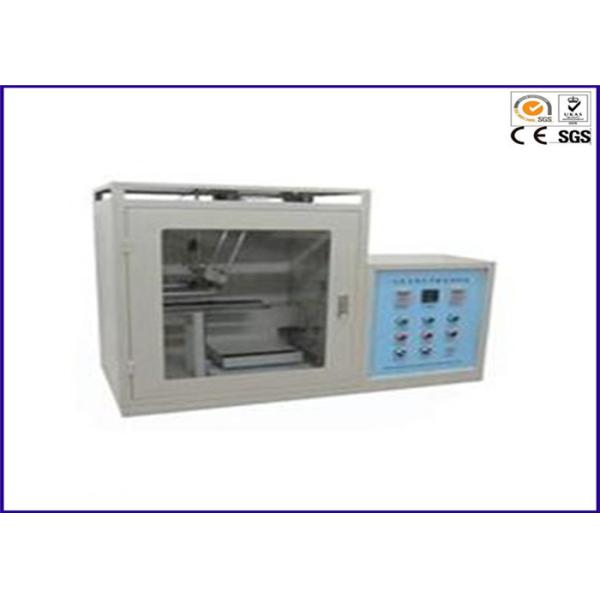

PLC Control PV 3357 UL Horizontal and Vertical Flammability Tester

Description:

This flammability tester machine is used for test of burning behavior of materials and components for damping and absorption parts in engine compartment as well as on the vehicle underbody for vehicles with spark ignition and diesel engines. To adjust flammability rating assessment both for horizontal or vertical burning performance as according to PV3357 and UL standards.

Features:

1,Bunsen burner position controlled by hand,auto-timing and postioning,easy operation,

2,Equipped with hypersensitivity warning device for gas leakage,automatic alarm for gas leakage,

3,Horizontal and vertical two bunsen burners fixed,

4,It needs fume hood or special exhaust system for the burnt gas,

5,Two sets of specimen holders for horizontal and vertical burning.

6,Change-over switch for horizontal and vertical flammability testing, easy operation.

Technical Parameters:

1,Standard bunsen burner diameter: 9.5mm；

2,PLC control with big LCD display;

3,Timing:0～999.9 s with accuracy of 0.1s, residual flame and afterglow time all automatic recording and LCD display;

4,Time to ignition:short time of 15s；long of 600s；

5,Flame level:adjustable with flame ruler of 100mm and 38mm；

6,Used gas:industrial methane,commercial propane gas ,LPG,natural gas,etc；

7,Power:AC220v；50Hz；50W；

8,Dimension:1000mm×800mm×1150mm.

9,Standards: PV 3357 and UL
