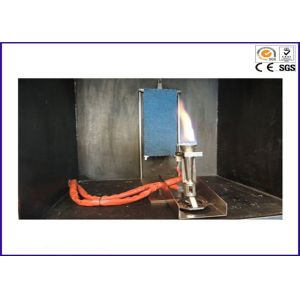

NFPA 701 Test Method 1 Vertical Flammability Tester for Single-layer or Multi-layer Fabrics

Application:

NFPA 701-2004 Flammability Tester, to determine the ignition resistance properties of draperies and other hanging fabrics according to test method NFPA 701#1, and it is suitable for single-layer or multi-layer fabrics, but not suitable for fabrics with density larger than 700g/m2 (21oz/yd2).

Standard:

NFPA 701-2004 Test Method 1

Specifications:

1. Open-type burning chamber structure;

2. Chamber body in calcium silicate board, and wrapped by stainless steel external;

3. Standard Meker laboratory burner;

4. Record burning time automatically;

5. Auto-ignition mode to avoid operative error;

6. Timer accuracy up to 0.1second;

7. Provide with a standard specimen holder

8. Power 220 /110 V 50/60 Hz 2 A

9. Weight 80 Kg

10. Dimensions 900 x 510 x 720 mm(LxWxH)
