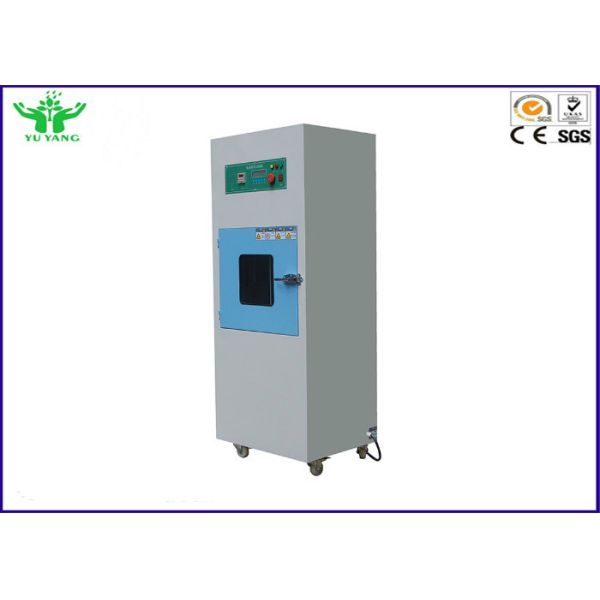

±1%FS Battery Crushing Safety Extrusion Machine AC 380V ±10% , 50/60Hz

Product Description:

The battery is to be crushed between two flat surfaces. The force for the crushing is to be applied by a hydraulic ram with a 32mm diameter piston. The crushing is to be continued until a pressure reading of 17.2 Mpa is reached on the hydraulic ram, resulting in an applied force of 13KN.Once the maximum pressure has been obtained it is to be released. A cylindrical or prismatic battery is to be crushed with its longitudinal axis parallel to the flat surfaces of the crushing apparatus. A prismatic battery is also to be rotated 90 degrees around its longitudinal axis so that both the wide and narrow sides will be subjected to the crushing force. Each sample battery is to be subjected to a crushing force in only one direction. Separate samples are to be used for each test.

Feature:

This equipment mainly used for safety inspection for batteries like vehicles lithium batteries,power battery,battery-cell, electric vehicle battery etc, which integrated with pressure system,explosion-proof system, data acquisition system,computer control system together,adopt independent machine and control system, realized remote control and testing .And have multi safety protection devices, available to comply with various test standard.

This equipment becomes necessary inspection equipment for the battery manufacturer and researcher.

Technical Parameter:

Standard:

1.01.GB/T 18332.2-2001 Nickel-metal hydride batteries of electric road vehicles

1.02.QC/T 743 Lithium-ion batteries for electric vehicles

1.03.QC/T 744Nickle-metal hydride batteries for electric vehicles

1.04.Vehicles battery related international standard (ISO/IEC/SAE/JEVA/CEN etc.) International Standard Association and 863 plan electric vehicles major projects related test specifications

1.05. QB/T 2947.3-2008 Electric bicycles-cell or battery and chargers Part 3:Li-ion batteries and chargers

1.06. DB12/T246-2005 Lithium batteries for electrical bicycles test specification

1.07. GB 19521.11-2005 Safety code for inspection of hazardous properties for dangerous goods of lithium batteries
