ASTM D1230 Horizontal Vertical Flammability Tester for Burning Combustibility

Ask Lasest Price
Brand Name :	YUYANG
Model Number :	YYF043
Certification :	CE
Price :	nigotiable
Payment Terms :	T/T
Supply Ability :	100 pcs per month
Delivery Time :	5-30 days accrording the quantity

Add to Cart

Product Details
Company Profile

ASTM D1230 Horizontal Vertical Flammability Tester for Burning Combustibility

Vertical Combustibility Tester Vertical Flame Test Equipment

ASTM D1230 Horizontal Vertical Burning Tester vertical combustibility tester vertical flame test equipment

45 degree flammability tester

Description:

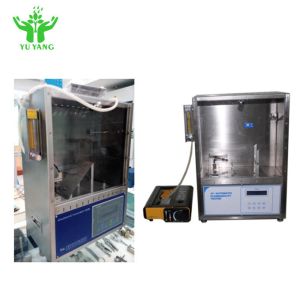

45 degree flammability tester, check the flammable performance of the textile

Stainless testing room with glass window,after ignition automatic time (0.01 second precision) automatic or manual ignition.

Parameters:

Manual firing device, including sample holder and brushing device.

Spread time scope: 0-99.99s

Firing time: 1s or specified

Resolution: 0.01s

Specimens clamp inside dimension: 152×38mm

Flame height: 15.875mm

Dimension: 540×410×300mm(L×W×H).

Igniter model: comply to ASTMD1230

Power Supply: 220V

Accessories: clamps 4pcs, weights, calibration plate 1pcs, Flame Gauge 1pcs

Spread time scope:	0-99.99s
Firing time:	1s or specified
Specimens clamp inside dimension:	152×38mm
Resolution:	0.01s
Flame height:	15.875mm
Power Supply:	220V

Standards:

ASTM D1230,FTMS 191-5908,CRF 16-1610,CALIF TB117,NFPA 702,ISO 8124-2

Net weight: 15KG, Gross weight: 21KG

Plywood box size: 50*42*60cm
