    Medical Surgical Mask Flame Retardant Testing Machine (60±5)mm/s GB19083

    Ask Lasest Price
    Brand Name : YUYANG
    Model Number : YYF089
    Certification : EN 136 ,GB 19083-2010 ,YY 0469-2011,GB 2626-2006
    Payment Terms : L/C, D/A, D/P, T/T, Western Union,
    Supply Ability : 300/sets/Month
    Delivery Time : 8-10 days
    • Product Details
    • Company Profile

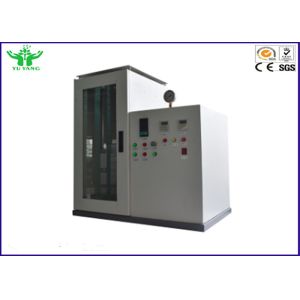

    Medical Surgical Mask Flame Retardant Testing Machine (60±5)mm/s GB19083

    GB 19083 Medical Surgical Mask Flame Retardant Tester (60±5)mm/s


    Brief Introduction:

    Medical Face Mask Fire Resistance Tester is mainly used to test the flame retardant performance of medical masks. The combustion performance of the mask is measured through a head mold wearing a mask de-vice to contact with the flame at a certain linear speed.


    The device is mainly used in the field of medical protection, and also can also be used for
    testing flame retardant properties of other textile coating materials.


    Standard

    GB 19083-2010 Technical requirements of
    medical protective masks
    YY 0469-2011 Technical requirements of
    medical surgical masks-Blood penetration
    test device
    GB 2626-2006 Respiratory protective products, Self - priming filtering particulates respirator-flammability
    BS EN136-1998 Respiratory protective de-
    vices -Full face masks - Requirements testing, marking


    Parameters:


    ItemsParameters
    Linear velocity of head automatic movement(60±5)mm/s
    Flame height40±4mm
    Flame temperature measurementThermocouple detection
    Burner height adjustment range30mm
    Metal head mold surface thickness2~3mm,Resistance to flame combustion
    Combustion timer0~9999.9s
    Accuracy±0.1s
    Power supplyAC220V,50Hz,500W
    WeightAbout 30kg
    When the flame is (20±2)mm above the burner, the temperature is (800±50)℃.
    distance between the top of the burner and mask lowest point is(20±2)mm.
