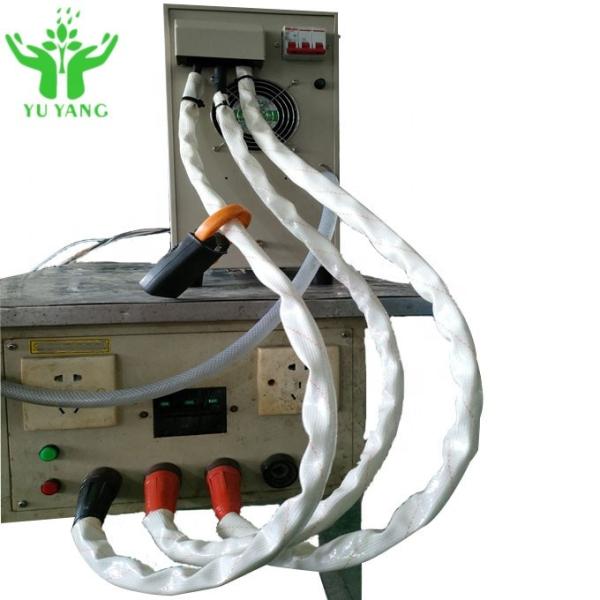

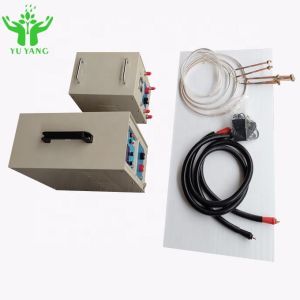

Ultrahigh Frequency Induction Heating Machine Induction Heating
Machine
Parameter
| item | value |
| place of Origin | China |
| Brand Name | YUYANG |
| Condition | New |
| Machine Type | Induction Heating Machine |
| Machinery TestReport | Provided |
| Marketing Type | New Product 2021 |
| Warranty of core components | 1 Year |
| Core Components | PLC, Motor |
| Warranty | 1 Year |
| Online support, Video technical support |
| Key Selling Points | Easy to Operate |
| After Warranty Service | Video technical support, Online support |
| Local Service Location | Malaysia, Saudi Arabia, Pakistan, India |
| Applicable Industries | Machinery Repair Shops, Manufacturing Plant, Other |
| Fluctuating frequenc | 30-80khz |
| Rated Power output | 40kw |
| Work power | 340V-430V |
| Maximum input cur | 25A |
| Output current | 200-1200A |
| Product size | main : 550x225x480mm |
| transformer : 350x215x380mm |
| Net weight | main : 23.5kgs |
| transformer : 20kgs |
Application
For Gear, shaft, Pipe, Bearing, Pump fitting, steel plate, roller
etc. hardening
Heating (hot forging, hot fitting and smelting):
1 Hot forging aims to fabricate the work pieces of certain
temperature (different materials require different temperatures)
into other shapes through forging press with the help of punch
press, forging machine or other equipments, for instances, hot
extrusion of watch case, watch flan, handle, mold accessory,
kitchen and table ware, art ware, standard part, fastener,
fabricated mechanical part, bronze lock, rivet, steel pin and pin.
2. Hot fitting refers to the connection of different metals or
metals with nonmetals through the heating based on the principle of
hot expansion or hot smelting, for instances, embedded welding of
copper core of computer radiator with aluminum sheet and speaker
web, compound of steel and plastic tube, sealing of aluminum foil
(tooth paste peel), motor rotor and sealing of tubular electric
heating element.
3. Smelting mainly aims to melt the metal into liquid by using the
high temperature, which is mainly applicable to the smelting of
iron, steel, copper, aluminum, zinc as well as various noble
metals.
Heat Treatment (surface quench):
It is mainly aims to change the rigidity of the metal materials
through the heat treatment to work pieces. Detail applications are
stated as follows:
1. Quench for various hardware and tools, such as plier, wrench,
hammer, ax, screwing tools and shear (orchard shear).
2.Quench for various automobile and motorcycle fittings, such as
crankshaft, connecting rod, piston pin, chain wheel, aluminum
wheel, valve, rock arm shaft, semi drive shaft, small shaft and
fork.
3. Various electric tools, such as gear and axes.
4. Quench for machine tools, such as lathe deck and guide rail.
5. Quench for various hardware metal parts and machined parts, such
as shaft, gear (chain wheel), cam, chuck and clamp etc.
6. Quench for hardware molds, such as small-size mold, mold
accessory and inner hole of mold.
Welding (braze welding, silver soldering and brazing)
It mainly aims to melt the solder by heating it to a certain
temperature for the purpose of connecting two types of metals of
the same material or different materials.
1. Welding of various hardware cutting tools, such as diamond tool,
abrasive tool, drilling tool, alloy saw blade, hard alloy
cutter, milling cutter, reamer, planning tool and solid center bit.
2. Welding of various hardware mechanical gadget: Silver soldering
and brazing of metals of the same variety or different
varieties, such as hardware toilet and kitchen products,
refrigerating copper fitting, lamp decoration fitting, precision
mold
fitting, hardware handle, eggbeater, alloy steel and steel, steel
and copper as well as copper and copper.
3. Compound pot bottom welding is mainly applicable to the braze
welding of circular, square as well as other irregular plain pot
bottom. It is also applicable to plain braze welding of other
metals.
4. Welding of heating disc of electric hot-water kettle mainly
refers to the braze welding of stainless steel flat base, aluminum
sheet and tubular electric heating elements of various forms.
Annealing (tempering and modulation):
1. Annealing of various stainless steel products, such as stainless
steel basin, annealed and extruded can, annealed folded
edge,annealed sink, stainless steel tube, tableware and cup.
2. Annealing of various other metal work pieces, such as golf ball
head, cue, brass lock, hardware copper fitting, kitchen knife
handle, blade, aluminum pan, aluminum pail, aluminum radiator and
various aluminum products. 1. Heating (hot forging, hot fitting and
smelting)
. Adopt imported high-quality IGBT solid power module and our
second generation frequency conversion technology, has distinct
cooling system to ensure that the device can continually work with
maximal power with 24 hours which improve the performance quality
of the device.
B. Constant current and power control function, can improve the
heating efficiency and save energy.
C. Simple and convenient installation can work after connecting to
380V power, water inlet, water outlet,.Professional
installation is not required.
D. Has timing function, can individually adjust heating time,
heat-preservation time, digit setting, heating current,
heat-preservation current.
E. This device has self-diagnosis alarming system for failure and
multi-level protection and display for overvoltage,
overcurent,over heat, underwater and phase lack
Advantages of Induction Heating Equipment
1. Easy installation: it can be used once it is connected with power source, induction
coil as well as water supply pipe and rising pipe; it is small in
size and light in weight.
2. Easy operation: you can learn to operate it within several minutes.
3. Fast start-up: it can be started to perform heating operation on condition that
water and power supply is available.
4. Low power consumption: As compared with conventional vacuum tube high frequency
equipments, it can save the power by approximately 70%. The smaller
the size of the work piece is, the lower power consumption would
be.
5. High effectiveness: it has such features as uniform heating (it is applicable to
adjust the spacing of the induction coil to ensure the appropriate
temperature as required by each part of work piece), fast warming
and limited oxic horizon, and can guard against any waste after
annealing.
6. Comprehensive protection: it has such functions as overpressure, over-current, overheat and
water shortage alarm indications as well as automatic control and
protection.
