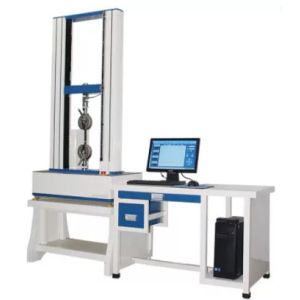

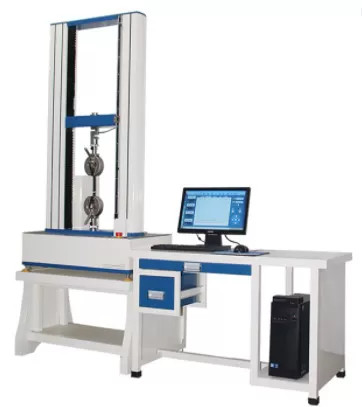

    Electronic Tensile Testing Machine Electromechanical Brick Compression

    Ask Lasest Price
    Brand Name : YUYANG
    Model Number : YYE1085
    Certification : CE
    Price : negotiable
    Payment Terms : T/T
    Supply Ability : 300 Set/Sets per Month
    Delivery Time : 5-20 Days
    • Product Details
    • Company Profile

    Electronic Tensile Testing Machine Electromechanical Brick Compression

    Stainless Steel 304 UV Accelerated Weathering Tester Aging Test


    Descriptions:


    Tensile testing is a fundamental type of mechanical testing performed by engineers and materials scientists in manufacturing and research facilities all over the world. A tensile test (or tension test) applies force to a material specimen in order to measure the material's response to tensile (or pulling) stress. This type of testing provides insight into the mechanical properties of a material and enables product designers to make informed decisions about when, where, and how to use a given material.

    Specifications:


    ModelYY-1065YY-1068
    Range of speed0.1~500mm/min50~500 mm/min
    MotorPanasonic sevor motorAC motor
    Resolution1/250,0001/150,000
    Capacity choice1, 2, 5,10, 20, 50,100, 200, 500 kg optional
    Stroke850 mm (can be customized)
    Accuracy± 0.5 %
    Force relative error± 0.5 %
    Displacement relative error± 0.5 %
    Test speed relative error± 0.5 %
    Effective testing space120 mm
    AccessoriesComputer, printer, system operation manual
    Optional accessoriesStretcher, air clamp
    Operation methodWindows operation
    Weight70 kg
    Dimension(W * D * H) 58 * 58 * 145 cm
    Power1 PH, AC 220 V, 50/60 Hz
    Stroke protectionMachinery, computer double protection, prevent over preset
    Force protectionsystem setting
    Emergency stop deviceHandling emergencies
